| 2BV系列真空泵适用于抽除气体和水蒸气，吸气压力可以达到33mbar绝压(97%真空度)。当真空泵在吸气压力低于80mbar的状态下长期工作时，应联接气蚀保护管，以对泵进行保护。如配大气喷射器，吸气压力可达10mbar，喷射器可直接安装在真空泵上。作为压缩机用时，其压力最大至0.26MPa(绝压) | |
| 性能特点 |
1、机泵同轴式直联设计，节省空间，易于安装。
2、采用机械密封作为标准配置,消除了泄露,维护简便。
3、运行平稳，噪音可低至62分贝。
4、统一的耐腐蚀设计，青铜叶轮提高了泵的耐腐蚀性，不锈钢材质更适用于更为苛刻的应用。
5、独特的柔性排气口设计，不会产生过压缩，确保了2BV在其性能范围内效率最佳 |
|
技术参数 |
|
曲线编号 |
产品型号 |
最大气量m3/min |
极限真空-Mpa |
电机功率kW |
泵转速r.p.m |
工作液流量L/MIN |
噪音
dB(A) |
|
60V |
2BV-2060 |
0.45 |
0.097 |
0.81 |
2880 |
2 |
62 |
|
61V |
2BV-2061 |
0.86 |
0.097 |
1.45 |
2880 |
2 |
65 |
|
70V |
2BV-2070 |
1.33 |
0.097 |
2.35 |
2850 |
2.5 |
66 |
|
71V |
2BV-2071 |
1.83 |
0.097 |
3.85 |
2860 |
4.2 |
72 |
|
110V |
2BV-5110 |
2.75 |
0.097 |
4 |
1450 |
6.7 |
63 |
|
111V |
2BV-5111 |
3.83 |
0.097 |
5.5 |
1450 |
8.3 |
68 |
|
121V |
2BV-5121 |
4.66 |
0.097 |
7.5 |
1450 |
10 |
69 |
|
131V |
2BV-5131 |
6.66 |
0.097 |
11 |
1430 |
15 |
73 |
|
161V |
2BV-5161 |
8.33 |
0.097 |
15 |
970 |
20 |
74 |
|
110V |
2BV-6110 |
2.75 |
0.097 |
4 |
1450 |
6.7 |
63 |
|
111V |
2BV-6111 |
3.83 |
0.097 |
5.5 |
1450 |
8.3 |
68 |
|
121V |
2BV-6121 |
4.66 |
0.097 |
7.5 |
1450 |
10 |
69 |
|
131V |
2BV-6131 |
6.66 |
0.097 |
11 |
1430 |
15 |
73 |
|
161V |
2BV-6161 |
8.33 |
0.097 |
15 |
970 |
20 |
74 | |
|

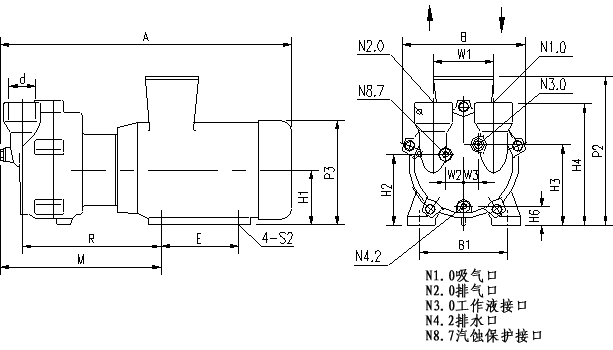

2BV2水环真空泵外形尺寸 |
|
型号 |
A |
B |
B1 |
E |
H1 |
H2 |
H3 |
H4 |
H6 |
M |
P2 |
|
2BV2060 |
455 |
186 |
140 |
100 |
90 |
118 |
126 |
195 |
37.5 |
244 |
250 |
|
2BV2061 |
476 |
186 |
140 |
100 |
90 |
118 |
126 |
195 |
37.5 |
263 |
250 |
|
2BV2070 |
545 |
223 |
160 |
140 |
100 |
128 |
146 |
222 |
33 |
280 |
270 |
|
2BV2071 |
566 |
223 |
190 |
140 |
112 |
140 |
158 |
234 |
45 |
309 |
300 |
|
型号 |
P3 |
R |
S2 |
W1 |
W2 |
W3 |
d |
N3.0 |
N4.2 |
N8.7 |
|
|
2BV2060 |
180 |
217 |
φ10 |
110 |
25.5 |
21 |
G1" |
G3/8" |
G1/4" |
G3/8" |
|
|
2BV2061 |
180 |
236 |
φ10 |
110 |
25.5 |
21 |
G1" |
G3/8" |
G1/4" |
G3/8" |
|
|
2BV2070 |
203 |
252 |
φ12 |
110 |
33 |
27 |
G11/2" |
G3/8" |
G1/4" |
G3/8" |
|
|
2BV2071 |
225 |
278 |
φ12 |
110 |
33 |
27 |
G11/2" |
G3/8" |
G1/4" |
G3/8" |
|

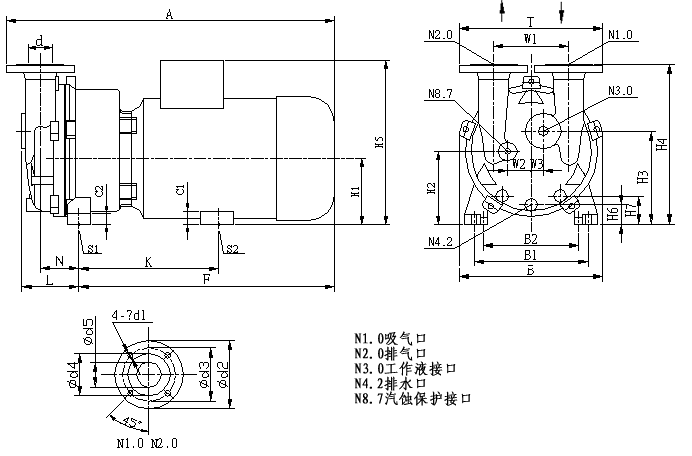

2BV5水环真空泵外形尺寸
2BV6水环真空泵外形尺寸
|
型号 |
Amax |
B |
B1 |
C1 |
F1 |
F2max |
H1 |
H2 |
H3 |
H4 |
K |
L |
N |
W1 |
|
2BV6110 |
1190 |
325 |
255 |
26 |
291 |
450 |
160 |
173 |
223 |
381 |
250 |
319 |
281 |
180 |
|
2BV6111 |
1237 |
325 |
279 |
26 |
360 |
470 |
180 |
196 |
242 |
401 |
320 |
365 |
327 |
180 |
|
2BV6121 |
1368 |
347 |
279 |
26 |
360 |
575 |
180 |
197 |
247 |
415 |
320 |
384 |
342 |
200 |
|
2BV6131 |
1495 |
377 |
320 |
26 |
461 |
585 |
215 |
234 |
287 |
467 |
414 |
405 |
357 |
200 |
|
2BV6161 |
1625 |
479 |
370 |
26 |
461 |
640 |
215 |
230 |
310 |
526 |
414 |
480 |
416 |
250 |
|
型号 |
W2 |
W3 |
S1 |
T |
d1 |
d2 |
d3 |
d4 |
d5 |
d |
N3.0 |
N4.2 |
N8.7 |
|
|
2BV6110 |
52 |
27 |
φ13 |
340 |
19 |
160 |
123 |
97 |
52 |
DN50 |
G3/4" |
G3/8" |
G3/8" |
|
|
2BV6111 |
52 |
27 |
φ13 |
340 |
19 |
160 |
123 |
97 |
52 |
DN50 |
G3/4" |
G3/8" |
G3/8" |
|
|
2BV6121 |
57 |
29 |
φ13 |
381.5 |
19 |
182 |
142 |
113 |
66.5 |
DN65 |
G3/4" |
G3/8" |
G3/8" |
|
|
2BV6131 |
57 |
29 |
φ15 |
381.5 |
19 |
182 |
142 |
113 |
66.5 |
DN65 |
G3/4" |
G3/8" |
G3/8" |
|
|
2BV6161 |
81 |
41 |
φ15 |
450 |
22 |
200 |
156 |
130 |
80 |
DN80 |
G3/4" |
G3/8" |
G3/8" |
|
|
|
|
